Manufacturing Facilities Trench Drain Systems

application image

Industrial-Grade, High-Strength Drainage for Production Floors, Assembly Lines, Machine Shops & Fabrication Plants

Manufacturing facilities require trench drainage systems designed to withstand heavy equipment, chemical exposure, high-volume water cleanings , temperature fluctuations, and constant forklift traffic. From assembly floors and machining centers to production lines, chemical processing zones, and loading corridors, drainage must provide structural strength, reliability, and hygienic performance under intense industrial conditions.

This application page explains the engineering requirements, industrial load considerations, layout strategies, and recommended trench drain systems optimized for manufacturing and industrial production environments.

Why Proper Drainage Matters in Manufacturing Facilities

Industrial production environments create challenging conditions for drainage systems. Without properly engineered trench drains, facilities may experience:

  • Standing water and slip hazards
  • Coolant, oil, and chemical accumulation around machinery
  • Premature damage to floors, joints, and structural slabs
  • Contamination risks and sanitation issues
  • Corrosion from solvents, lubricants, detergents, and industrial chemicals
  • Forklift and vehicle rutting or surface deterioration
  • Disrupted workflow and costly downtime

A durable, industrial-grade trench drain system ensures safe operations, protects floor infrastructure, and supports efficient manufacturing processes.

Requirements Engineering for Manufacturing Trench Drain Systems

Industrial drainage must meet high thresholds for strength, chemical resistance, and operational functionality.

applications image

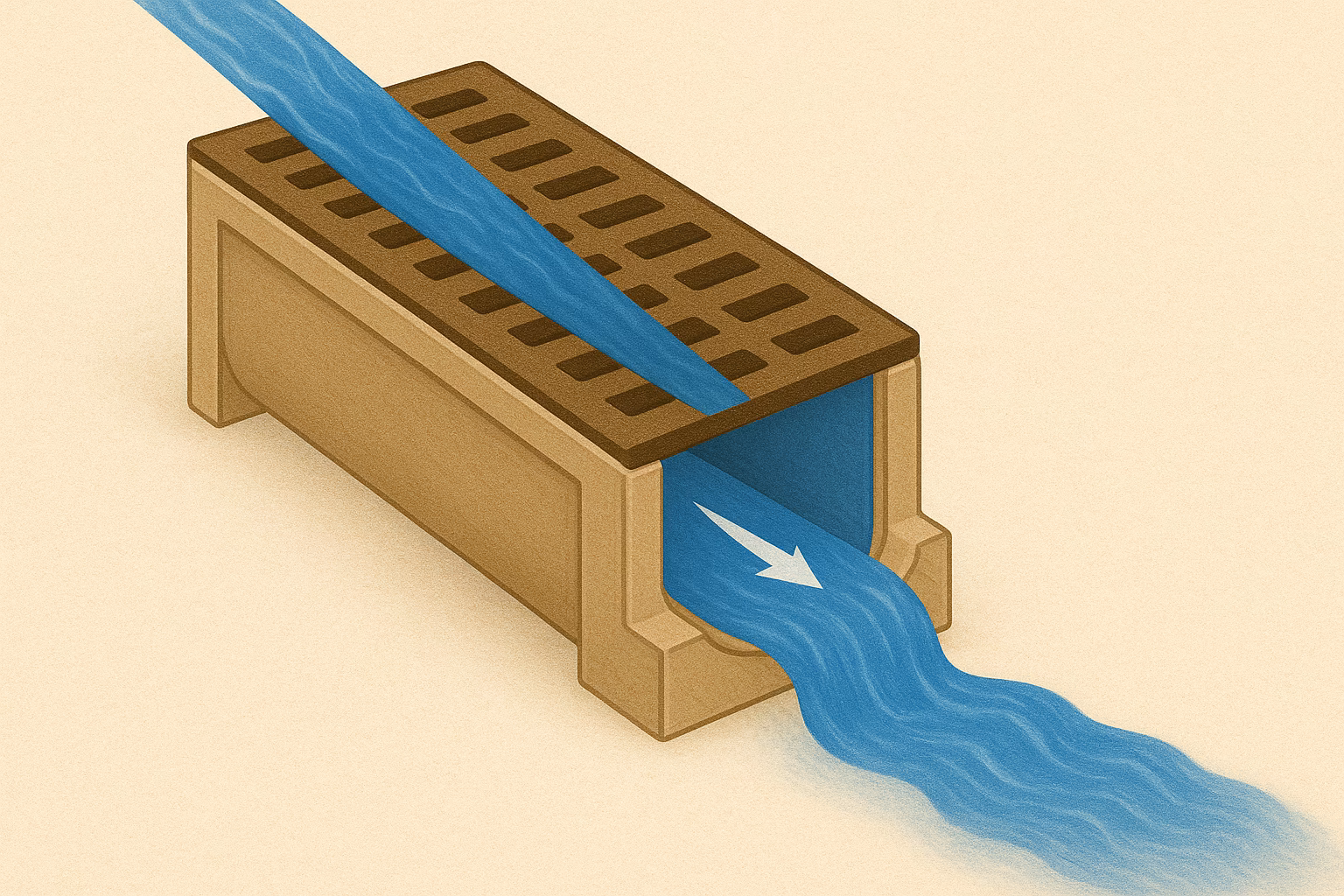

Functional Requirements

High-Volume Liquid & Waste Capture

Must handle production fluids, lubricants, coolant runoff, cleaning water, and chemical residues

Smooth channel interiors ensure efficient drainage and easy cleaning

Chemical-Resistant Performance

Drain systems must resist cutting fluids, degreasers, solvents, detergents, and manufacturing byproducts

Integration with Production Flow

Drainage must not interfere with machinery operation, forklift travel, or assembly line movement

applications image

Environmental Requirements

Chemical Exposure Resistance

Drain systems must withstand exposure to:

  • Petroleum-based lubricants
  • Coolants
  • Degreasing solutions
  • Cleaning agents
  • Metalworking fluids
  • Industrial solvents

Temperature Stability

Must tolerate hot washdowns and cold industrial environment conditions

Corrosion Resistance

Prevents long-term deterioration of channels and grates

Mechanical Requirements

Extreme Load Capacity

Manufacturing environments utilize:

  • Forklifts
  • Pallet jacks
  • CNC machine skids
  • Rolling carts and tuggers
  • Heavy tooling & assembly equipment

Impact & Vibration Resistance

Grates and frames must withstand repeated forklift impacts, turning forces, and dropping tools

Structural Stability

Channels must remain flush with industrial floors to avoid vibration issues with equipment

Required load ratings: Class C / D / E depending on zone.

Material Selection Criteria

Drain materials must balance structural strength, chemical resistance, and long service life.

Load Rating Considerations

Load Class Description Manufacturing Usage
Class C Medium load Light manufacturing, packaging, assembly
Class D Heavy-duty Main aisles, machine centers, forklift lanes
Class E Extra heavy-duty Foundries, fabrication, heavy industrial

Grate Material Considerations

Ductile Iron Grates (SwiftDrain 600, 300, 200)

  • Forklift-rated
  • Impact-resistant
  • Ideal for high-traffic industrial lanes

Stainless Steel Grates (200 Series optional)

  • Best for chemical-sensitive or sanitary production environments
  • Corrosion resistant

Channel Material Considerations

SwiftDrain 200 Series – High-Performance Polymer Concrete (8")

  • Strong chemical resistance
  • High compressive strength
  • Pre-sloped sections improve hydraulic flow
  • Suitable for machine centers, processing areas, and heavy equipment zones

SwiftDrain 300 Series – Heavy-Duty Polymer Concrete

  • Designed for extreme industrial loads
  • Superior strength for CNC machining centers, heavy fabrication areas, and foundries
  • Long-term durability under impact and vibration

SwiftDrain 600 – HDPE Channels (6")

  • Lightweight and corrosion resistant
  • Suitable for moderate-to-heavy manufacturing environments
  • Effective for long runs or areas requiring flexibility & chemical protection

Site Conditions to Evaluate

Floor Slope & Drainage Flow

Manufacturing floors must be pitched for proper drainage under large equipment

Chemical Exposure Zones

Identify reactive or corrosive agents used in production

applications image

Forklift & Machinery Traffic Patterns

Determines grate load rating and frame reinforcement

Flooring Type

Compatible with epoxy-coated, polished, or sealed concrete floors

Manufacturing Facility Drainage Layout Considerations

Machine Center & CNC Equipment Rows

Drains installed between machines to manage coolant and lubricant spills

Assembly Line Layout

Linear drains along conveyor paths or assembly stations

Minimizes downtime caused by fluid accumulation

Forklift Aisles & Transport Routes

Heavy-duty trench drains with ductile iron grates and strong frames

Chemical Mixing & Washdown Zones

Prefer polymer concrete or stainless solutions for chemical resistance

Maintenance & Utility Rooms

Drains handle cleaning water, solvents, and service fluid containment

Receiving & Shipping Areas

Drains protect floors from outdoor runoff and equipment moisture

User and Operational Requirements

Safety

Slip-resistant grates required in wet areas

Durability

Industrial-grade materials prevent premature failure

Low Maintenance

Smooth channels simplify cleaning and reduce downtime

Chemical Compatibility

Prevents degradation and extends system life

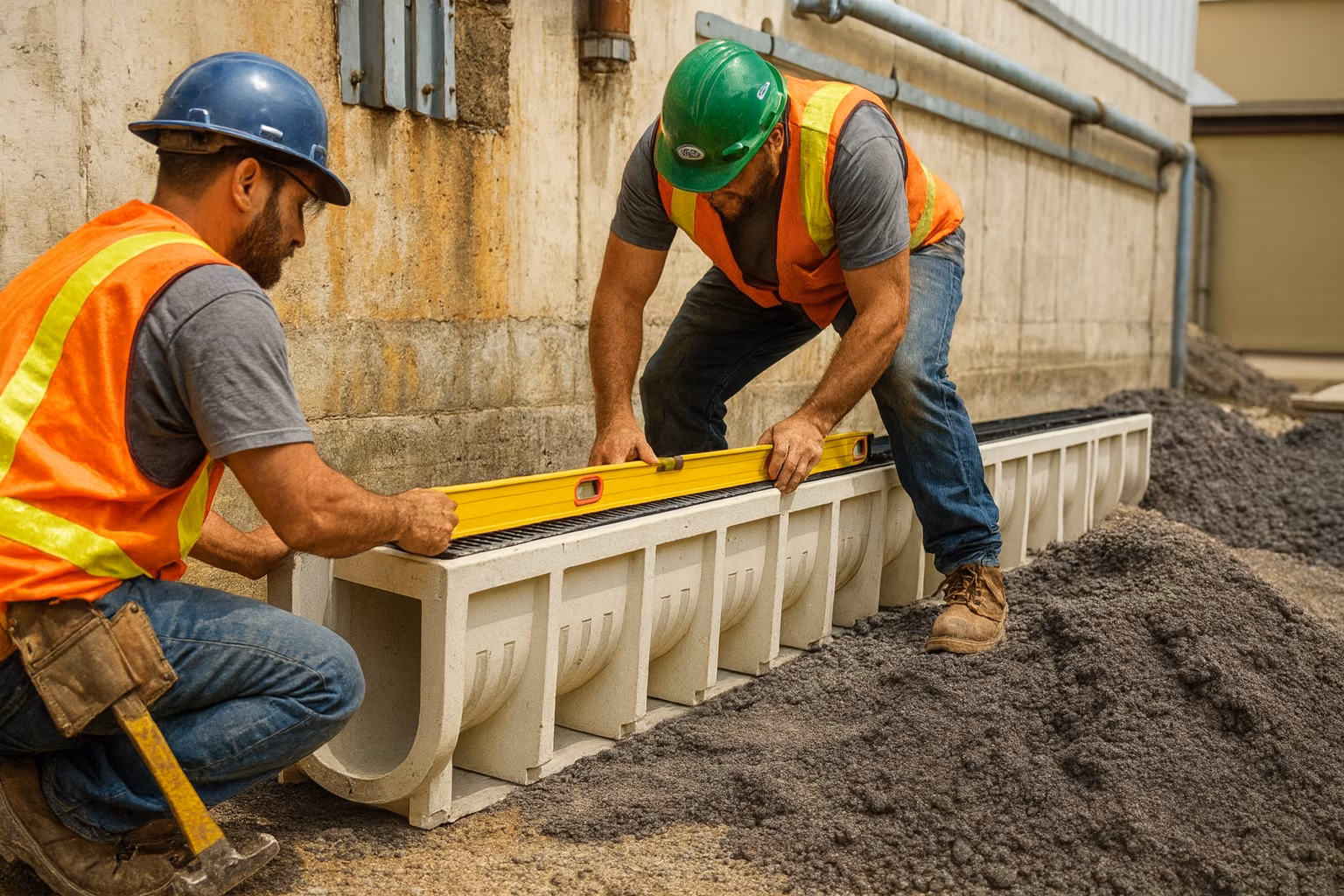

Engineering Considerations

Hydraulic Capacity

Must match washdown and production fluid discharge rates

Structural Concrete Encasement

Required in forklift and machinery zones

Engineering Considerations

Engineering Considerations

Thermal Expansion

Polymer and HDPE systems must tolerate thermal shifts

Cleanability

Stainless and polymer surfaces minimize buildup

Product Recommendation

SwiftDrain 200 Series – High-Performance Polymer Concrete (8")

With Ductile Iron or Stainless Steel Grates

Ideal for heavy-duty industrial manufacturing

View

Key Features

  • Pre-sloped polymer concrete for superior drainage
  • High compressive strength for forklift & machinery traffic
  • Stainless or ductile iron grates depending on chemical exposure
  • Suitable for chemical-heavy or fluid-intensive manufacturing

Best For

  • CNC machining centers
  • Industrial processing lines
  • Fluid-handling operations
  • Heavy-duty assembly areas

Product Recommendation

SwiftDrain 300 Series – Extreme-Duty Polymer Concrete

With Ductile Iron Grates

Engineered for the most demanding industrial environments

View

Key Features

  • Maximum structural strength
  • Designed for constant heavy forklift and machinery loading
  • Performs well in foundries, fabrication floors, and heavy assembly zones
  • Long-term durability under high-impact conditions

Best For

  • Fabrication shops
  • Tool & die facilities
  • Foundries and forging plants
  • Heavy equipment manufacturing

Product Recommendation

SwiftDrain 600 – 6-Inch HDPE Channel System

With Ductile Iron Grates & Forklift-Rated Frames

Cost-effective and durable for general manufacturing areas

View

Key Features

  • HDPE channel resists chemicals, oils, and solvents
  • Ductile iron grates support forklifts, pallet jacks, and heavy carts
  • Forklift-rated frames prevent edge damage and frame deflection
  • Lightweight and easy to install

Best For

  • Assembly lines
  • Light-to-medium manufacturing
  • Packaging zones
  • Utility rooms and maintenance corridors

Final Recommendations

Heavy-Duty & High-Chemical Manufacturing

Use SwiftDrain 200 Series

  • High-performance polymer concrete
  • Stainless or ductile iron grates

Extreme Load, High-Impact Industrial Zones

Use SwiftDrain 300 Series

  • Maximum structural strength
  • Ideal for fabrication, machining, and heavy equipment production

Moderate Industrial & Cost-Sensitive Zones

Use SwiftDrain 600 with ductile iron grates and forklift-rated frames

  • Durable
  • Economical
  • Suitable for general production areas
join-bg

Request Technical Specifications

Equip your manufacturing facility with trench drain systems engineered for industrial performance, chemical resistance, and long-term durability. SwiftDrain 200, 300, and 600 provide comprehensive drainage solutions for every type of manufacturing environment — from precision machining to heavy industrial production.

Request technical specifications, CAD files, or speak with a manufacturing drainage specialist to begin your system design.
