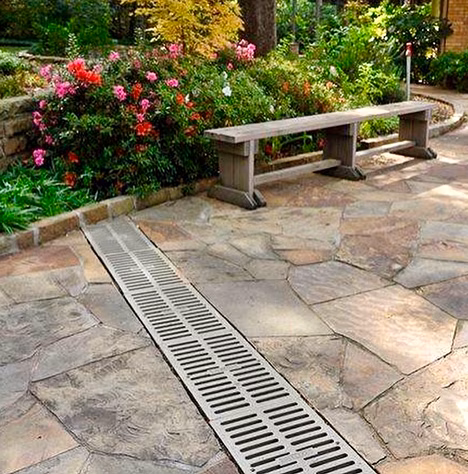

Courtyards, plazas, patios, and outdoor gathering areas require trench drainage systems that efficiently manage stormwater while complementing the architectural design. Whether installed in residential, commercial, or municipal environments, courtyard drainage must balance performance, aesthetics, safety, and long - term durability.
This page presents a requirements-engineering breakdown, material selection considerations, and the best drainage solutions tailored specifically for courtyards.
Courtyards collect runoff from surrounding roofs, walkways, and landscaping, making them prone to flooding and water-related structural damage. Without proper drainage, you may encounter:
A properly engineered trench drain ensures the courtyard remains functional, safe, and visually consistent throughout all seasons.
Courtyard drainage systems must be developed based on functional, environmental, and mechanical requirements to ensure long-term performance and durability.
This section outlines how to choose the correct load rating, channel material, grate material, and how site-specific conditions influence design.
| Load Class | Description | Typical Courtyard Usage |
|---|---|---|
| Class A | Pedestrian traffic only | Residential courtyards, plazas, walkways |
| Class B | Light vehicle access | Townhomes, small service vehicles |
| Class C | Moderate vehicle loading | Commercial courtyards, maintenance pathways |
| Class D | Heavy utility vehicles | Limited-use delivery or service zones |
Polymer concrete channels with decorative stainless steel or polymer composite grates
Pre-sloped polymer concrete or stainless steel trench drains with heel-proof stainless steel grates
HDPE or polymer concrete channels with cast iron or composite grates
Design a courtyard drainage system that enhances aesthetics,
ensures long-term performance, and protects surrounding
architectural elements. Whether you're building a residential
patio, commercial plaza, or public gathering space, selecting the
right trench drain materials and load rating is essential to
delivering a reliable system.
Request technical specifications, access CAD drawings, or consult
with a courtyard drainage specialist to start your project.
